Flappy Paddle System
Note. To see detailed explanation of the pneumatic system, please look on the page.
Once I managed to shoehorn a 6 speed sequential gearbox into the chassis it didn't take me long to progress to the obvious next step - Flappy paddles and full throttle gear changing :-)
Looking at the systems available, the choice was between pneumatic and electric, with staunch adherents for both systems. After much humming and harring I finally came down on the side of pneumatics as this seemed to be the gentlest system on the gearbox.
Next stage was to source a system, which is when I discovered how expensive they were, upwards of £3000! Ouch.
When I looked into what a kit comprised of, I was shocked at how much the components were sold individually for. The actuators sold for around £500 on their own! Unless there is something very special inside, this a lot money for a simple pressure powered piston.
After some thought I decided to make my own system, the rational being that if it doesn't work I can revert to a commercial system.
First item on my list were the flappy paddles. I found a pair of Mercedes paddles for £60 on good ol' eBay that I could adapt. I wanted bigger/longer paddles so I designed and cut a pair out of polycarbonate.I wasn't happy with the rigidity so I made another pair out of aluminium and these are what I used. I milled the top face of the Merc paddles flat and glued my extended paddles on top.
Now all I needed was a steering wheel to fit them to. Fortunately I was already on to that particular case so no dramas there :-)
Next part to source was the actuator and this is where AliExpress comes into the picture. This is the Chinese version of Amazon but a lot cheaper :-)
I bought a 25mm diameter actuator with 50mm stroke, thinking that this looked to be of a similar size to the £500 commercial kit one.
Before I could test my theory I had to fabricate a bracket to hold it on to the gearbox. I located suitable existing bolts on the gearbox and utilised these to fix the bracket to.
When I tested the actuator on the bench it was fine. However, once connected to the gearbox it would change up but not down. A little bit of head stratching and I decided that the problem was that the actuating piston takes up a significant percentage of the surface area of the piston, so the is less air pressure available to push the piston back in than to push it out. Doing a little maths I concluded that going up to a 40mm piston would give me more than enough pressure.
Original actuator proved to be too small.
Acuator bracket mocked up in aluminium sheet.
I'm a paragraph. Click here to add your own text and edit me. It's easy.
Bracket finished. Note steel top hat washers preventing bolt hole from elongating.
Replacement 40mm bore actuator.
Smaller SMC solenoid under test.
Airtec Solenoid bolted to actuator.

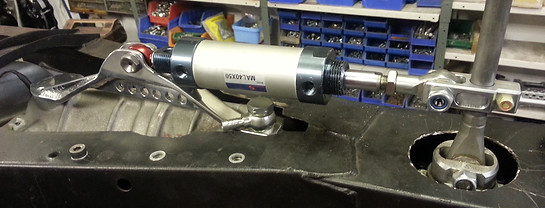

New actuator fitted

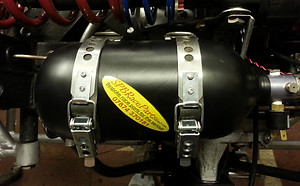

While I was sorting out the bracket I was also sourcing an air reservoir. I settled on a carbon fibre paint ball cylinder. Certified to 5000psi this should cope as I will be using a max of 200psi.
With the help of Tony at Reef Engineering we adapted the cylinder's fittings so I could connect it to my compressor (another AliExpress purchase). Tony supplied me with a pressure regulator so a consistant pressure can be supplied to the solenoids.
Gave the cylinder a coat of matt black paint to tidy it up a bit.
Like the actuator, I bought a couple of solenoids before settling on which one to use, the smallest of course :-)
Solenoid fitted and plumbed in.
Final setup. Note that the solenoid bracket has been lightened and the aluminium fixing bolts have had their heads reduced and been centre drilled :-)
The titanium bolt securing the actuator has also been centre drilled.
Next up was the down shift throttle blipper. Again, these were silly money commercially so I made my own. If it works, great. If not there is alway sthe fall back position but at least I would have tried and it is fun.
Sourced a mini actuator with a 5mm stroke and a tiny solenoid from AliExpress (can you see a pattern emerging here?) and fabricated a support for them. From AliExpress I also bought all the 6mm push fit pneumatic connectors. For the price of one on eBay I could get 5 of the same make. Probably where the eBay sellers get them from.
